Caracteristicas

Especificaciones

Industrias aplicables: Hoteles, & de la comida; Fábrica de la bebida, granjas, restaurante, uso en el hogar, venta al po

Ubicación de la sala de exposición: Ninguno

Saliente-inspección video: Proporcionado

Informe de prueba de la maquinaria: Proporcionado

Tipo del márketing: Producto ordinario

Garantía de los componentes de la base: 1 año

Componentes de la base: Motor

Condición: Nuevo

Voltaje: 380V

Poder: 1.5kw

Peso: 500 kilogramos

Dimensión (l*w*h): 1480*800*1000m m

Garantía: 1 año

Nombre: Cortador automático comercial del cubo de la carne de la máquina del dicer

Función: Corte forzen la carne

Operación: Automático

Uso: Carne, pollo, carne de vaca, verdura

Uso: Cortando, cortando y cortando los cubos en cuadritos

Cortar tamaño: 4-30m m a elegir

Capacidad: 500-600KG/H

Material: acero inoxidable 304

Cortar tamaño de la ranura: 84*84*350m m

Proceso de tipos: Cortador congelado automático de la carne

Después de servicio de garantía: Soporte técnico video, ayuda en línea

Ubicación local de ServiceÂ: Ninguno

Servicio post-venta proporcionado: Ayuda en línea

Certificación: ISO

Información básica

Certificación: ISO

Pago y Envío Términos

Packaging Details: Standand plywood case for chicken breast dicing machine

Supply Ability: 100 Set/Sets per Month chicken breast dicing machine

Descripción de producto

Products Description

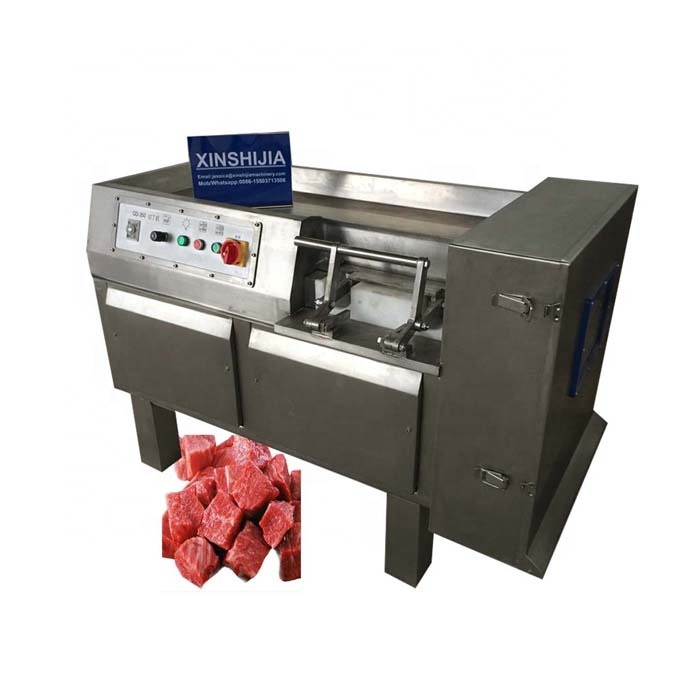

Commercial automatic dicer machine meat cube cutter

XSJ dicing machine is the professional for meat ,vegetables and fruits mincing,it can cut the fresh,frozen meat,
chicken,duck,vegetable,fruits into graininess.With high capacity and durable quality,is the first choice for food
processing and cutting equipment.

Main Parameters

Model	RZ-SYJ500	RZ-QD-350
Volts	380V (Support custom made)	380V (Support custom made)
Power	1.5KW	2.25KW
Capacity	500-600KG/H	700-900KG/H
Dicing Size	5,6,7,8,9,11,13,16,20mm or custom made	5,6,7,8,9,11,13,16,20,27mm
Size	1480×800×1000mm	19409801100mm

Feature

Factory directly sale automatic fresh and frozen chicken breast beef meat cube cutting dicing machine

1. Cutting diced minimum for 4 mm, biggest, for 30 mm
2. Safety, the dicing machine work only after the front door is closed; once the front door open in the
cutting process, the machine stops automatically.
3. Adjusting thickness-cutting knob may carry out steeples speed regulation of push rod so as to meet
the requirement of different cutting thickness.
4. Having adopted the use of pre-pressure design so as to ensure making diced meat in even cubes
5. When single-edge cutting, meat push rod makes step-by-step motion to ensure correct cutting size
6. The cutting synchronization is good, easy to operate the tool easy to clean, easy to replace.

Structure

XSJ meat dicing machine is mainly composed of a machine frame,shell used for cutting material , pusher dial,knife assembly,transmission system and electric control system.Dicing machine frame,shell,dial, hopper and food contact parts are made of stainless steel.

Working Principle

In the machine working , pusher dial drive the material to a high-speed rotation, under the action of centrifugal force, the vertical knife will cut the meat into section,and then material through the disc cutter to be strips, next step meat will be send to the cross-cutting knife,be cut into the required cube

Details Images

Recommend Products

Chicken and ribs cutting machine

Fresh meat strip and cube cutter

Meat mixer

Meat Grinder

Bone meat grinder

Chicken feet cutting machine

FAQ

1.Q:How to choose the suitable one?
A:Please tell us your detailed requirements by mail or online,we will recommend the suitable one
as your request.
2.Q:Why the price is just a range?
A:Because different model and qantity,the price is different,competitive price will be according to
your model and quantity.
3.Q:How can I pay?
A:We accept many payment,such as T/T,Western Union,Moneygram.......
4.Q:When I receive it after pay?
A:The normal models can be sent out within 7-10 days,please contact us to check shipping time
to your address.
5.Q:Is it will be broken during transport?
A:Please don't worry,our goods with standard export package.
6.Q:What should I do if I don't know how to use?
A:Please don't worry,manual user will be sent together,you can also contact us for technical support
7.Q:What should I do if some parts broken?
A:Please don't worry,different machine we have 12 months warranty for the wear parts.
But need customer side bear the shipping freight.You can also buy from us after 12 months.

Best Quality,Best Service,We always here in 24 hours!

Zhengzhou XinShiJia Machinery mainly manufacture the meat processing machines,

milk&juice processing machines etc.We have more than 10 years manufacturing experience,and

founded the trading company(department) in 2014,in Henan Province for trading business to sell all over the world.
